DESCRIPTION
Revised 8/24
THIS ATTACHMENT INCLUDES

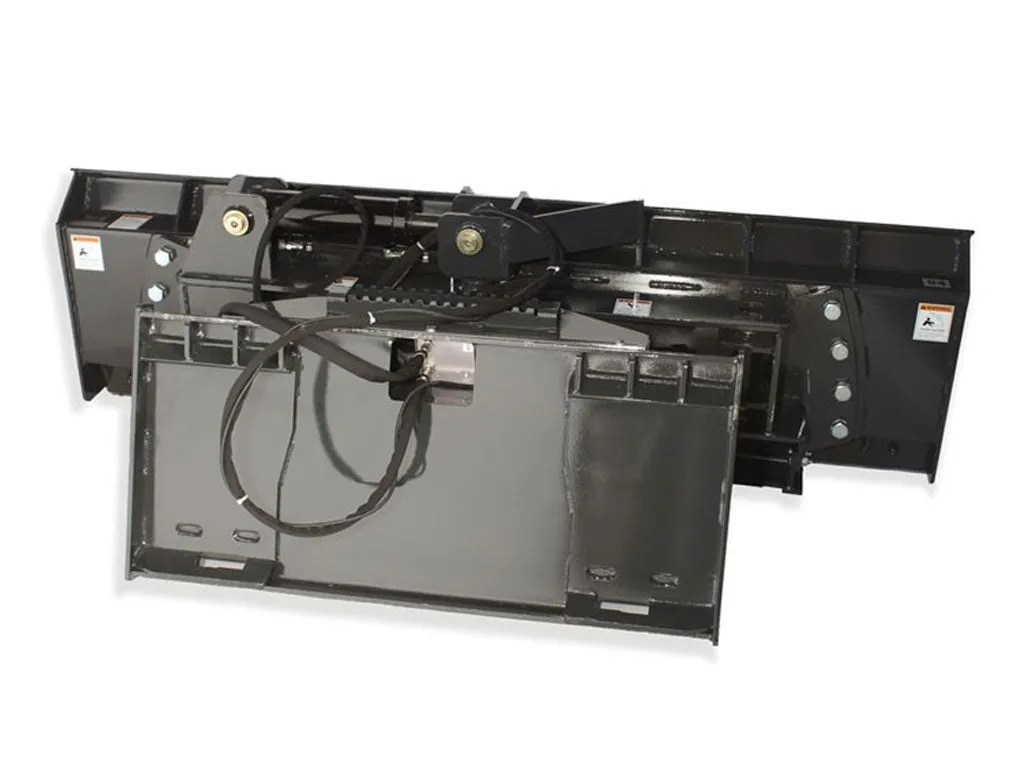

- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS

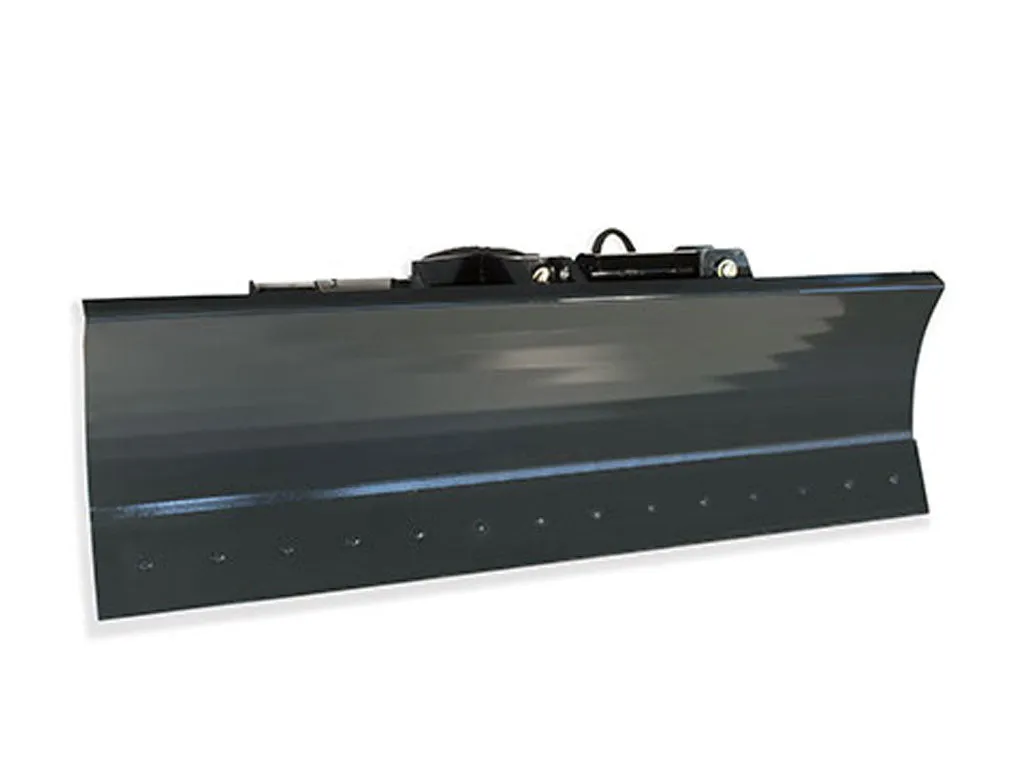

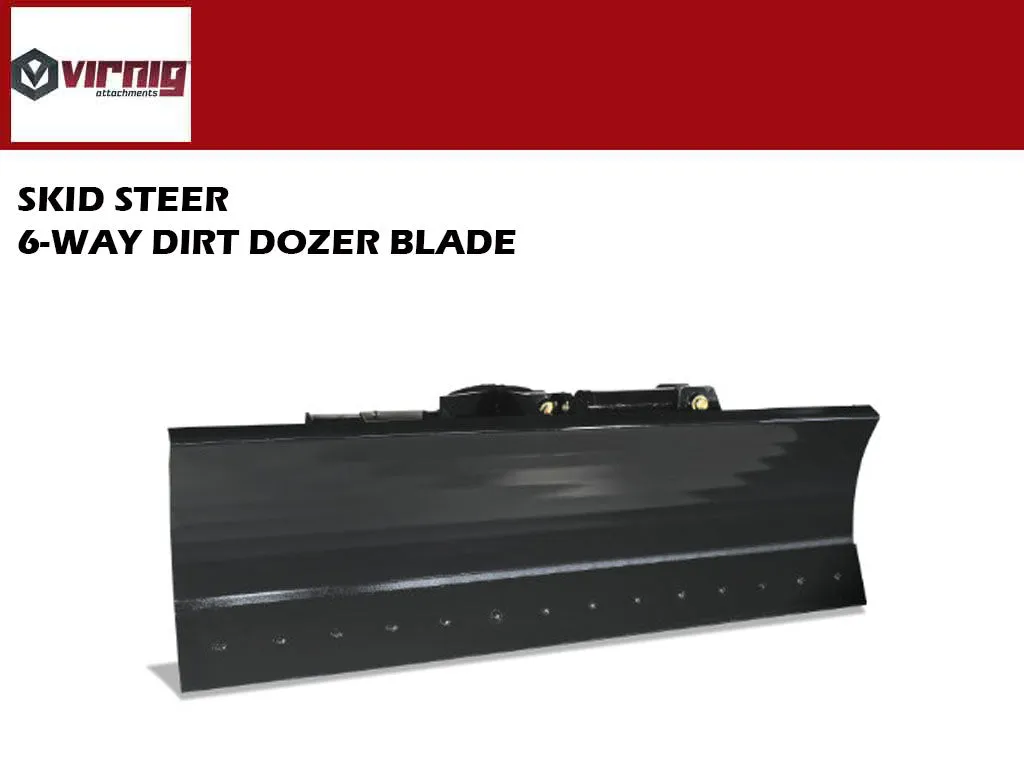

Six-way dozer blade with heavy-duty frame, 3/8″ thick moldboard and adjustable skid shoes.
- Two-cylinder hydraulic angle and one-cylinder hydraulic tilt utilizing one electric valve and one loader valve.
- Corrosion, dent and flake resistant NitroSteel® cylinder rods made in the USA.
- 2 1/8” hinge and oscillation pins, replaceable Teflon® coated bushings provide lubrication at all pivot locations.
- 5/8” x 8” reversible, replaceable bolt-on wear edge.
- Tall sides provide capacity, while compact depth provides leverage to pry under stumps and rocks.
- Three flush mount shanks, with replaceable Series 23 cast teeth, welded to a 3/4” x 6” weld-on wear edge.
- Bucket is reinforced on each side with three large gusset plates.
- NOTE: Does not have a trip edge or trip moldboard.
AVAILABLE OPTIONS
- 12 V Accessory Plug - Utilizes 12 volt accessory plug, cigarette lighter, in cab for power, includes magnetic box with switch for control
- Power Source - Utilizes power source (battery) of loader for power, includes 12 volt accessory outlet, 12 volt accessory plug and magnetic box with switch for control
SPECS
- Blade Angle (Degrees): /- 30
- Blade Oscillation (Degrees): /- 10
- Center Edge: 5/8" x 8" Bolt-on
- Cylinder Bore / Stroke: 3.5" / 8.0"
- Pins: Cylinder/ Hinge /Oscillation: 1.563" / 2.125" / 2.125"
- Recommended Loader Capacity: Greater than 1800 lbs ROC
| Model | 72" | 84" | 96" |
| Overall Blade Width (in) | 74.0 | 86.0 | 98.0 |
| Width at Full Angle (in) | 64.1 | 74.5 | 84.9 |
| Blade Height (in) | 25.8 | 25.8 | 25.8 |
| Overall Height (in) | 28.1 | 28.1 | 28.1 |
| Overall Depth (in) | 38.0 | 38.0 | 38.0 |
| Moldboard Thickness (in) | 0.375 | 0.375 | 0.375 |
| Weight (lbs) | 1510 | 1575 | 1640 |
