DESCRIPTION
DO NOT OPERATE CUTTER WITHOUT A SHATTERPROOF CAB ON LOADER.

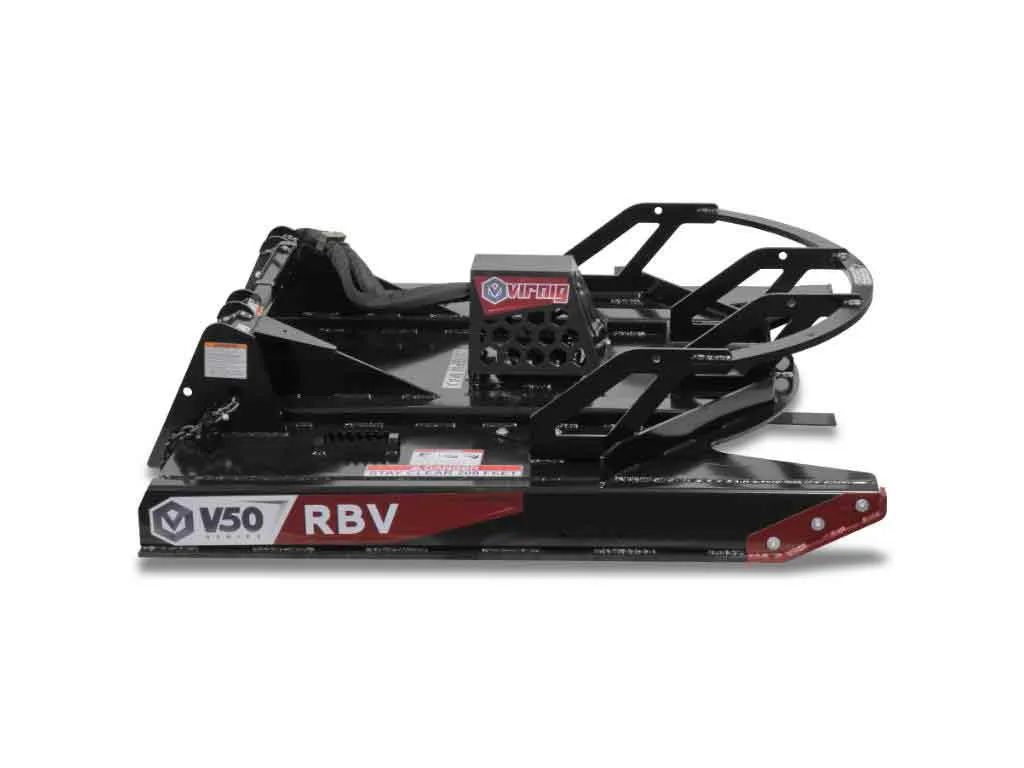

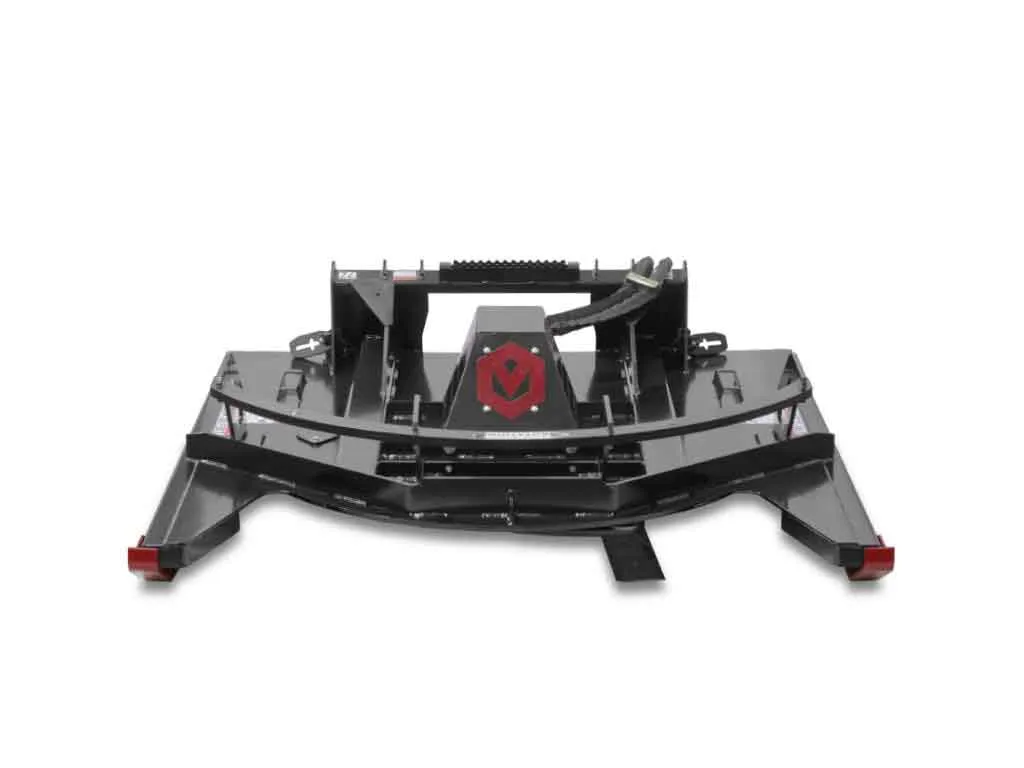

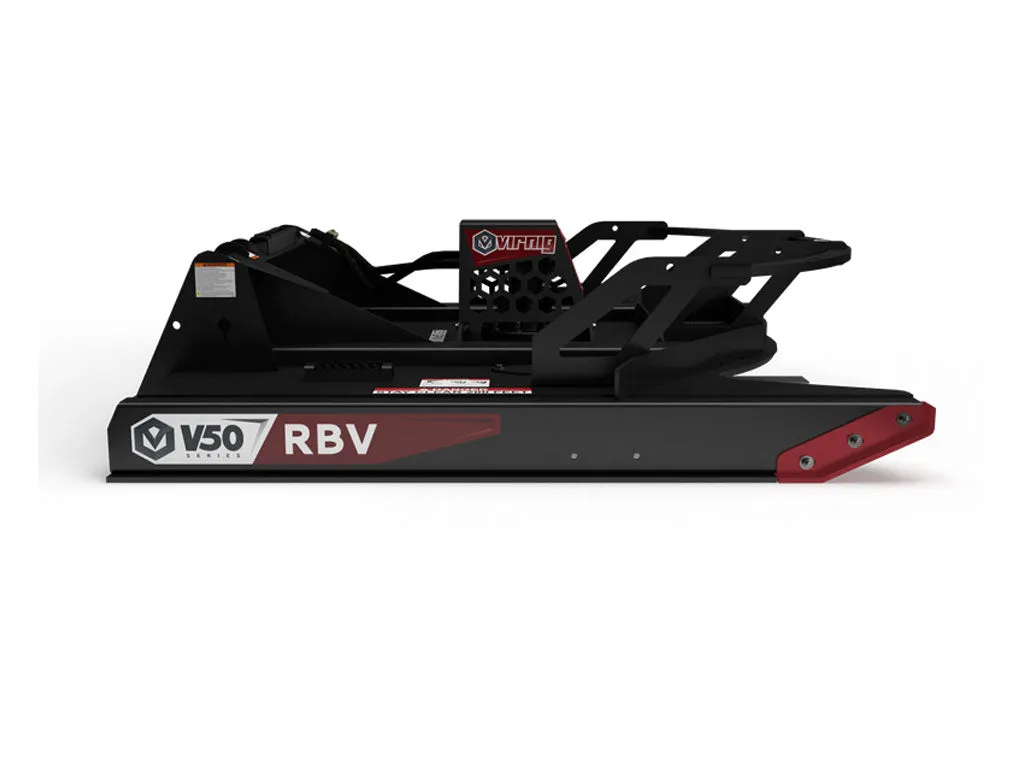

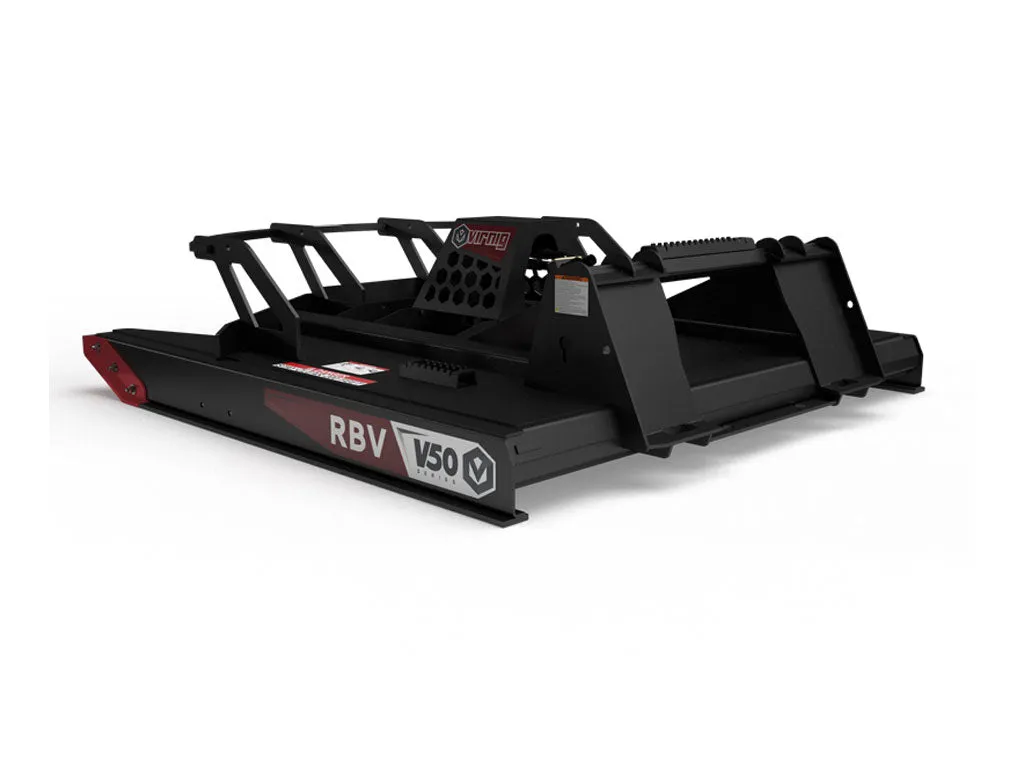

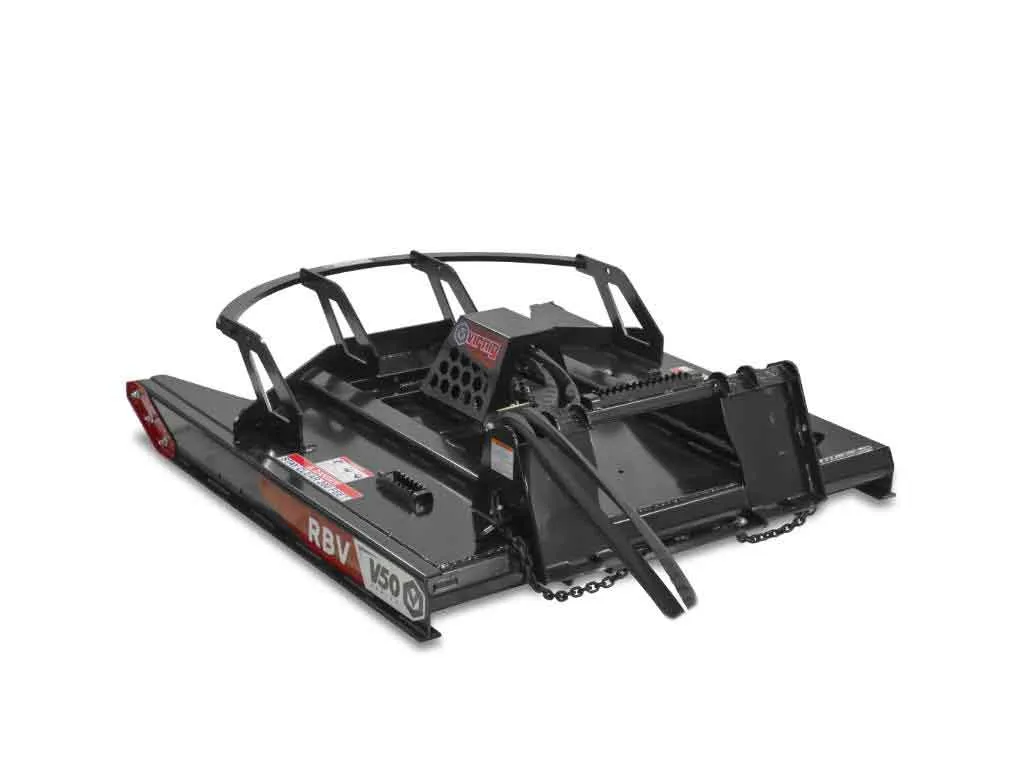

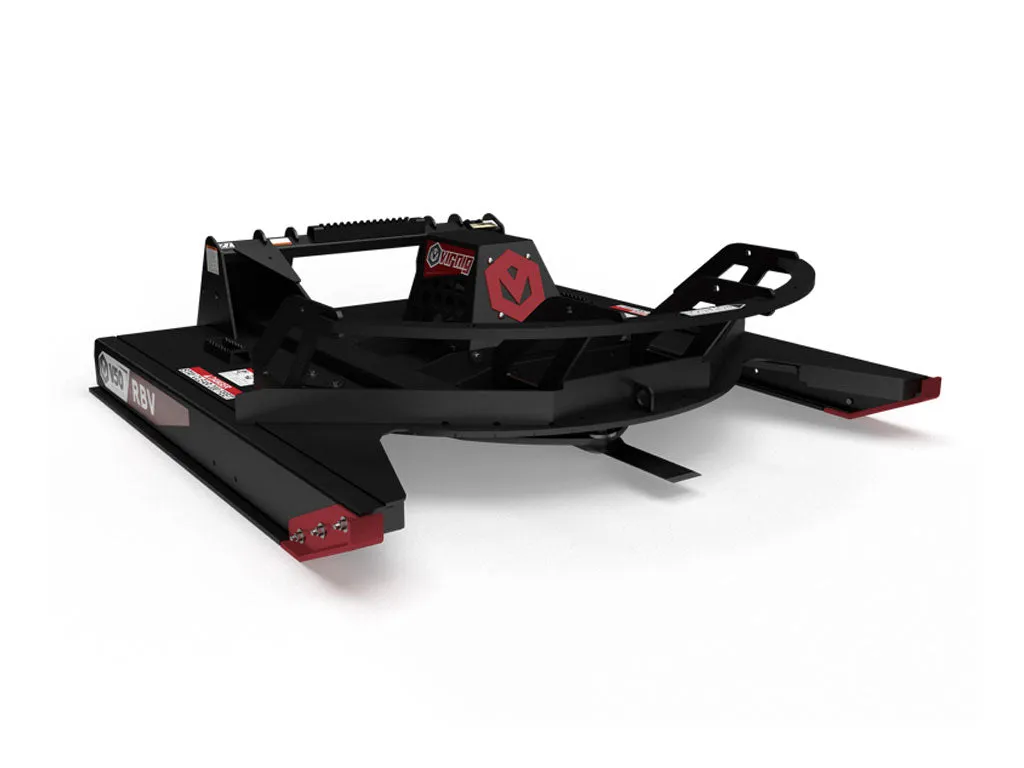

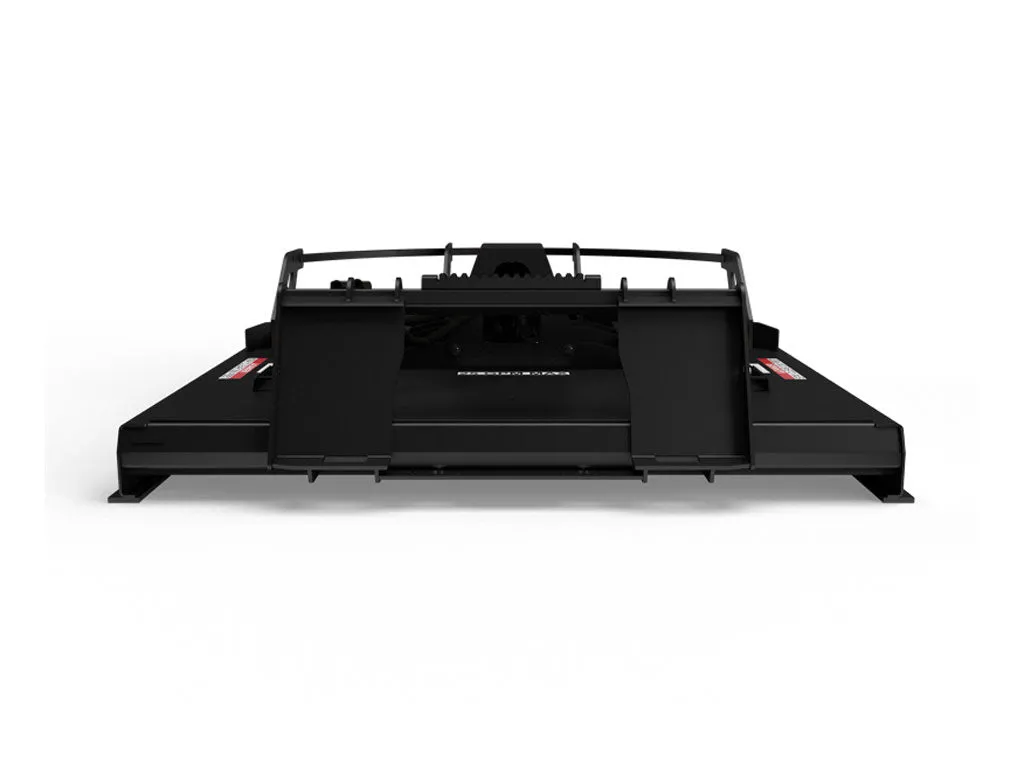

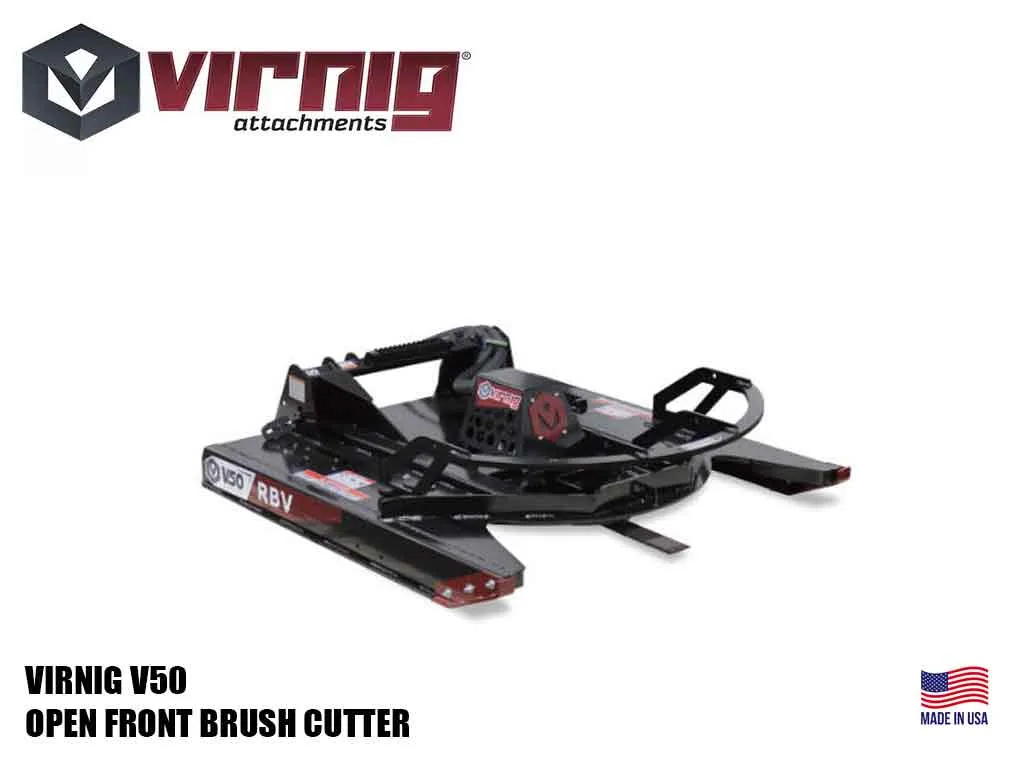

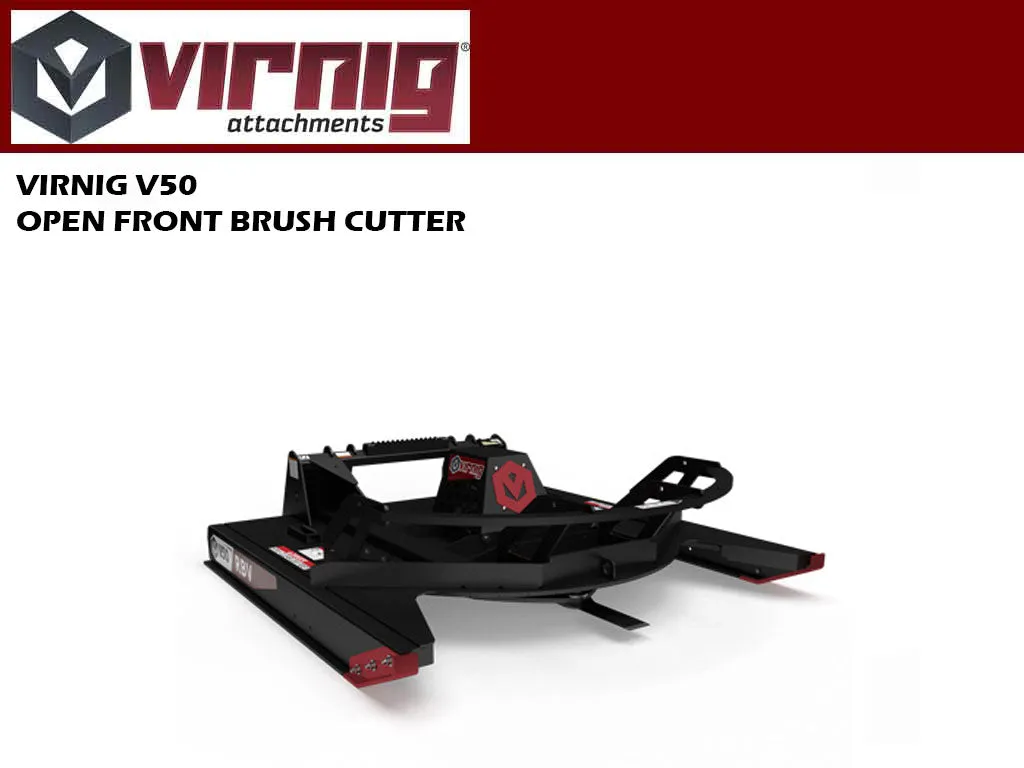

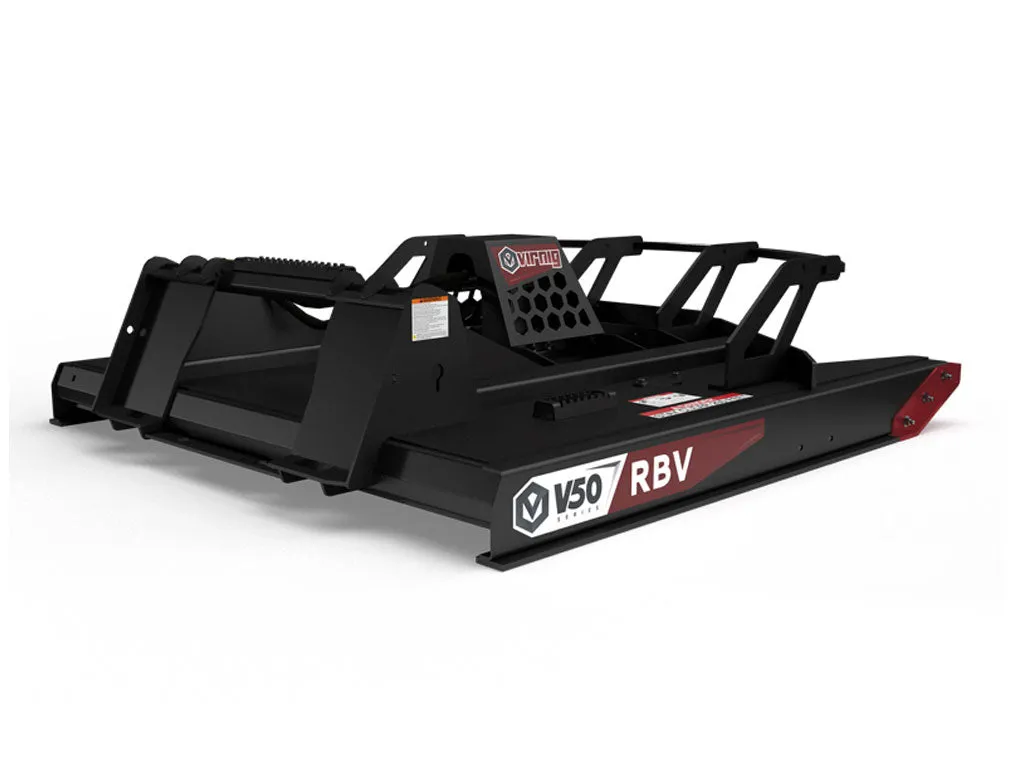

ROTARY BRUSH CUTTER
Cuts up to 6″ diameter trees and rough-cuts grass and brush.
DIRECT DRIVE SYSTEM WITH RELIEF VALVES
Premium drive components including Eaton® motor provide optimum performance and longevity.
HYDRAULIC BRAKING
Dynamic hydraulic braking stops the flywheel in less than 10 seconds.
VENTED MOTOR GUARD
Shields the motor and hose adapters from falling debris while maximizing airflow to keep the motor cool.

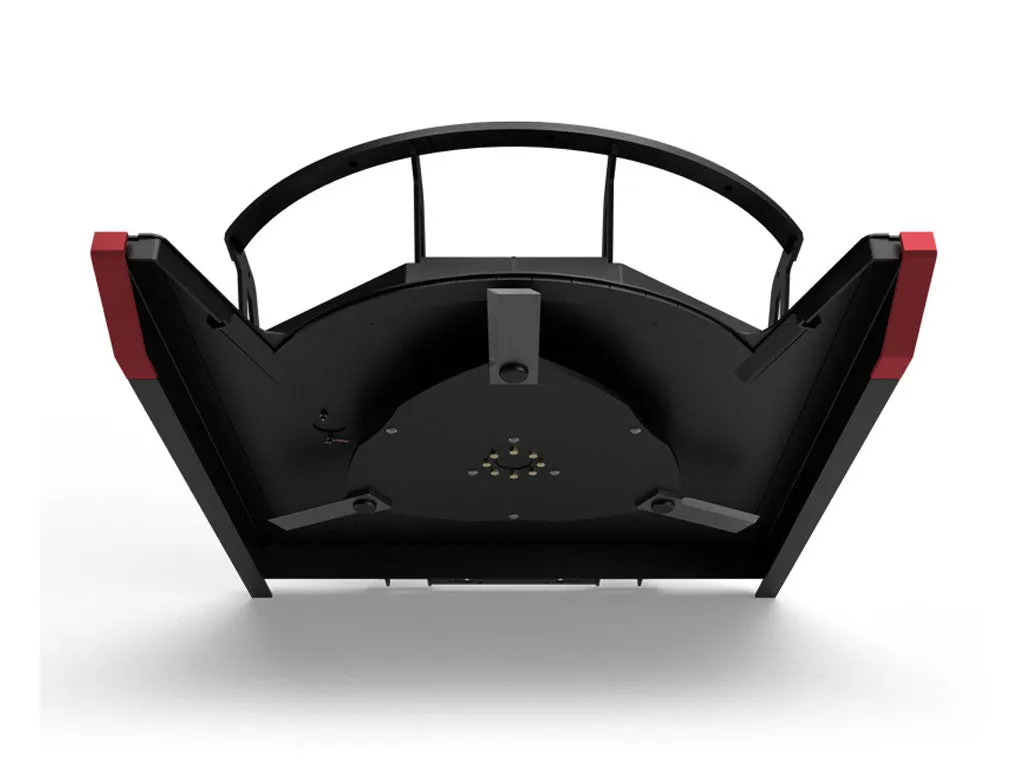

ROUNDED FLYWHEEL WITH DOUBLE-SIDED BLADES
Flywheel bounces off stumps and debris. Blades can be flipped to utilize second sharpened edges.
TALL PUSH BAR
Provides rigidity and helps push over thick brush and trees.
REPLACEABLE SKID SHOES
Increase the mower deck’s wear life.
SPECIFICATIONS
| MODEL | RBV66-0 | RBV72-0 | RBV78-0 | RBV84-0 | |
| Cut Width | 66.0 | 72.0 | 78.0 | 84.0 | |
| Overall Cutter Width (Inches) | 72.0 | 78.0 | 84.0 | 90.0 | |
| Overall Height (Inches) | 21.4 | ||||
| Cutter Depth (Inches) | 76.3 | 82.3 | 88.3 | 94.3 | |
| Deck Height (Inches) | 7.3 | ||||
| Push Bar Height (Inches) | 20.4 | ||||
| Minimum Cut Height (Inches) | 2.0 | ||||
| Cutting Capacity, Diameter (Inches) | 6.0 | ||||
| Deck Thickness: Top / Side (Inches) | 0.25¹ | ||||
| Recommended Flow Rate (GPM) | 14-25 Standard Flow, 25-42 High Flow | ||||
| Approximate Weight (Pounds) | 1465² | 1550² | 1625² | 1700² | |
| Recommended Loader Capacity | Greater than 1500 pounds | ||||
¹Deck Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
²High Flow motor options add approximately 70 pounds to model weight.
| Name (Model) | Widths Available | High Flow Available | Cut Capacity (Diam) | # of Blades | 72" Flywheel Weight (lbs) | Front Type | Options Available | 72" Model Weight (lbs) | Rec. Loader Capacity (lbs) |
|---|
|
|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| 60" & 72" | No | 3.0" | 3 | 220 | Closed | N/A | 1300 | > 1,500 | |
| 60" & 72" | No | 3.0" | 3 | 220 | Open | N/A | 1310 | > 1,500 | |
| 60", 66", 72", 78" | Yes | 4.0" | 3 | 225 | Closed | Rear Roller and Swivel Casters | 1435* | > 1,500 | |
| 60", 66", 72", 78" | Yes | 4.0" | 3 | 225 | Closed | Rear Roller and Swivel Casters | 1680* | > 1,500 | |
| 66", 72", 78", 84" | Yes | 6.0" | 3 | 275 | Open | N/A | 1550* | > 1,500 | |
| 72", 78", 84" | Yes | 8.0" | 4 | 550 | Open | N/A | 2120* | > 2,200 |
|
Blade Tip Speed (FPM) |
Blade Tip Speed (FPM) |
Blade Tip Speed (FPM) |
Blade Tip Speed (FPM) |
|
| Model |
25 GPM Min |
33 GPM Max |
33 GPM Min |
42 GPM Max |
|
66" 25-33 GPM |
12,630 | 16,670 | ||
|
72" 33-42 GPM |
11,056 | 14,085 | ||
|
78" 25-33 GPM |
13,775 | 18,185 | ||
|
84" 33-42 GPM |
12,070 | 15,365 | ||
|
66" 25-33 GPM |
14,925 | 19,700 | ||
|
72" 33-42 GPM |
13,080 | 16,645 | ||
|
78" 25-33 GPM |
16,075 | 21,200 | ||
|
84" 33-42 GPM |
14,085 | 17,930 |
